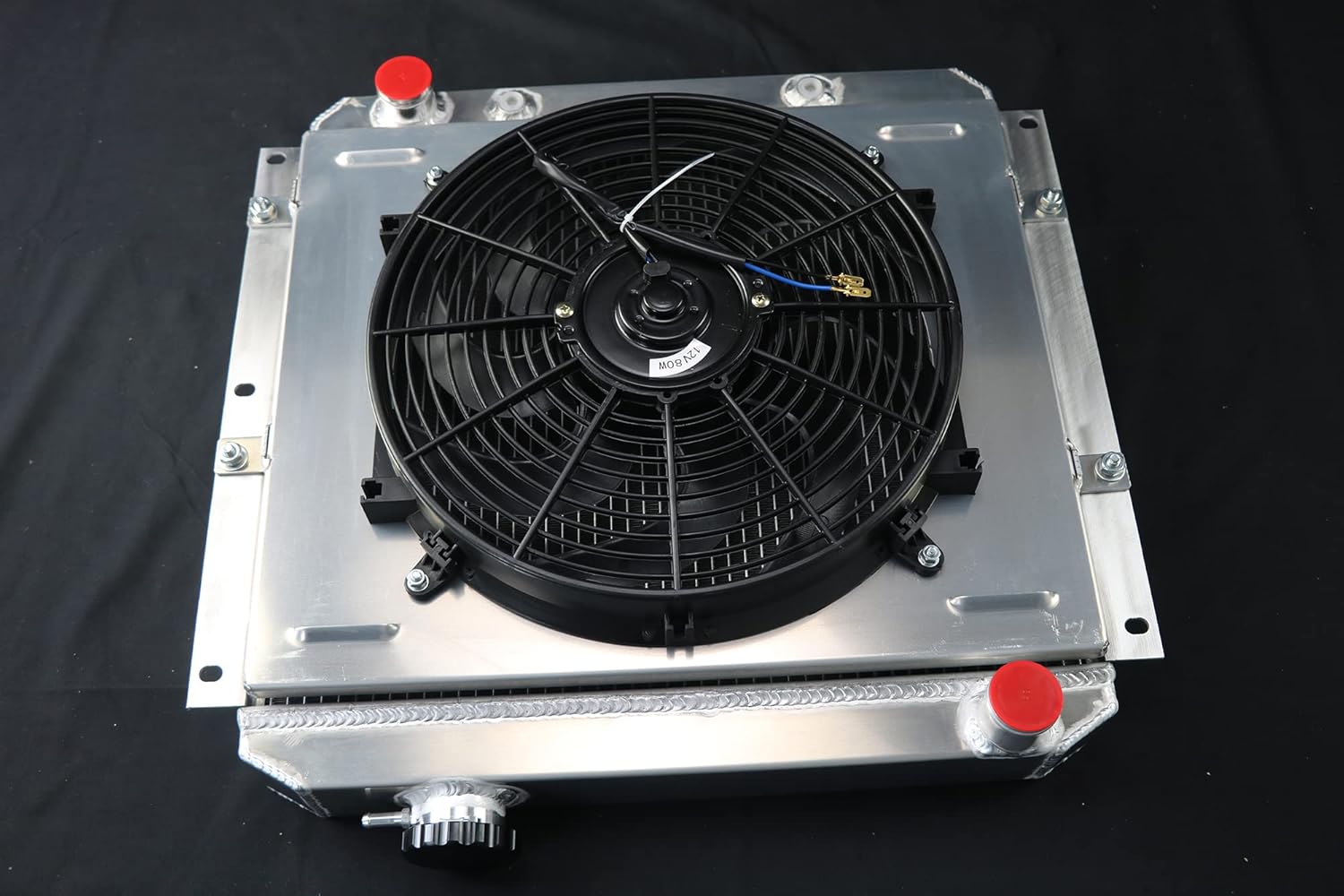

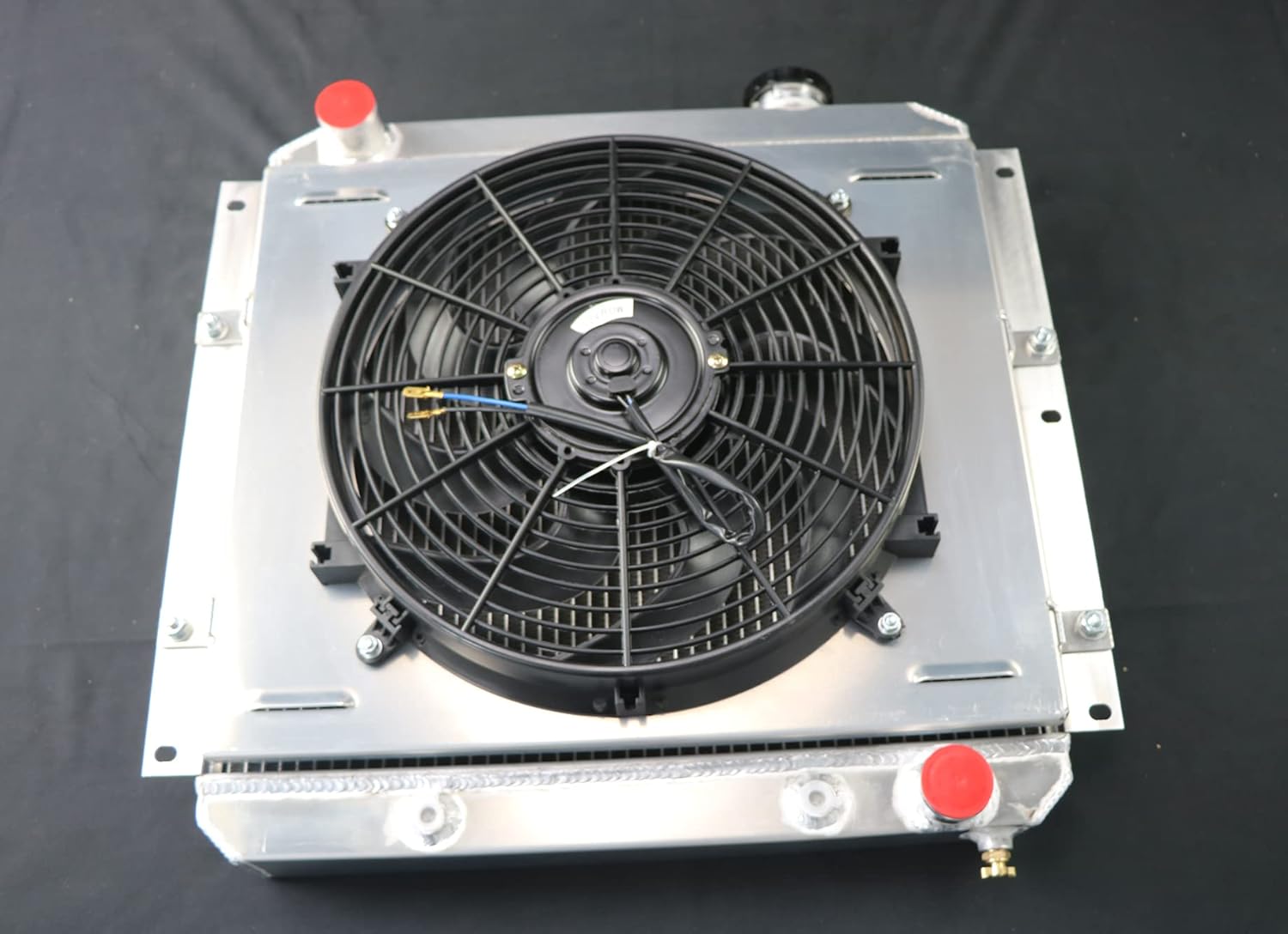

CU180 Radiator Compatible with 1960-1984 Toyota Land Cruiser 3.9L 4.2L L6 Sport Utility, Toyota Land Cruiser Radiator, 3 Row Radiator + Shroud/Fan + Relay Kit

This Radiator Compatible with: 1975-1984 Toyota Land Cruiser 4.2L L6 1960-1974 Toyota Land Cruiser 3.9L L6 PLS double check OEM radiator core/overall size & inlet/outlet location before ordering. Thermostat Relay Kit Instructions: * Activates by grounding electric fans at preset temperature. * 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. 14'' FAN Spec: Maximum Fan CFM: 2200±200 Fan Diameter: 14.05" X 14.05" X 2.5" Number of Blades: 8 S-Type blades Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Radiator Arrived Damaged? All aluminum radiator is easy got damage during shipping, we offer full refund or replacement if your order arrived damaged. (clear pics of damaged radiator and packing box is required before we resend or refund) Radiator Leaking/Not Working after Installed? 12 Months warranty. (clear pics of leaking details is required before we offer solution) Contact us if you have any question! Your message will be replied within 12 hours!

• Core/Overall Size (Inch): 16.1 x 19.2 x 1.73 / 22 x 21.6 x 5.8
• 1.5'' INLET at upper driver side ; 1.5'' OUTLET at lower passenger side
• Internal transmission oil cooler included: G1/4（Z)
• Leak/durability repeated tested; No drilling or modifications needed during installation
• Complete aluminum radiator assembly with no plastic end tanks or rubber gaskets
• Buy with no worry-12 months warranty
• High density serpentine fins deliver optimum airflow across core tubes for better cooling
• Controlled atmosphere furnace brazed core with TIG welded tanks and brackets
• OEM style brass petcock drain included

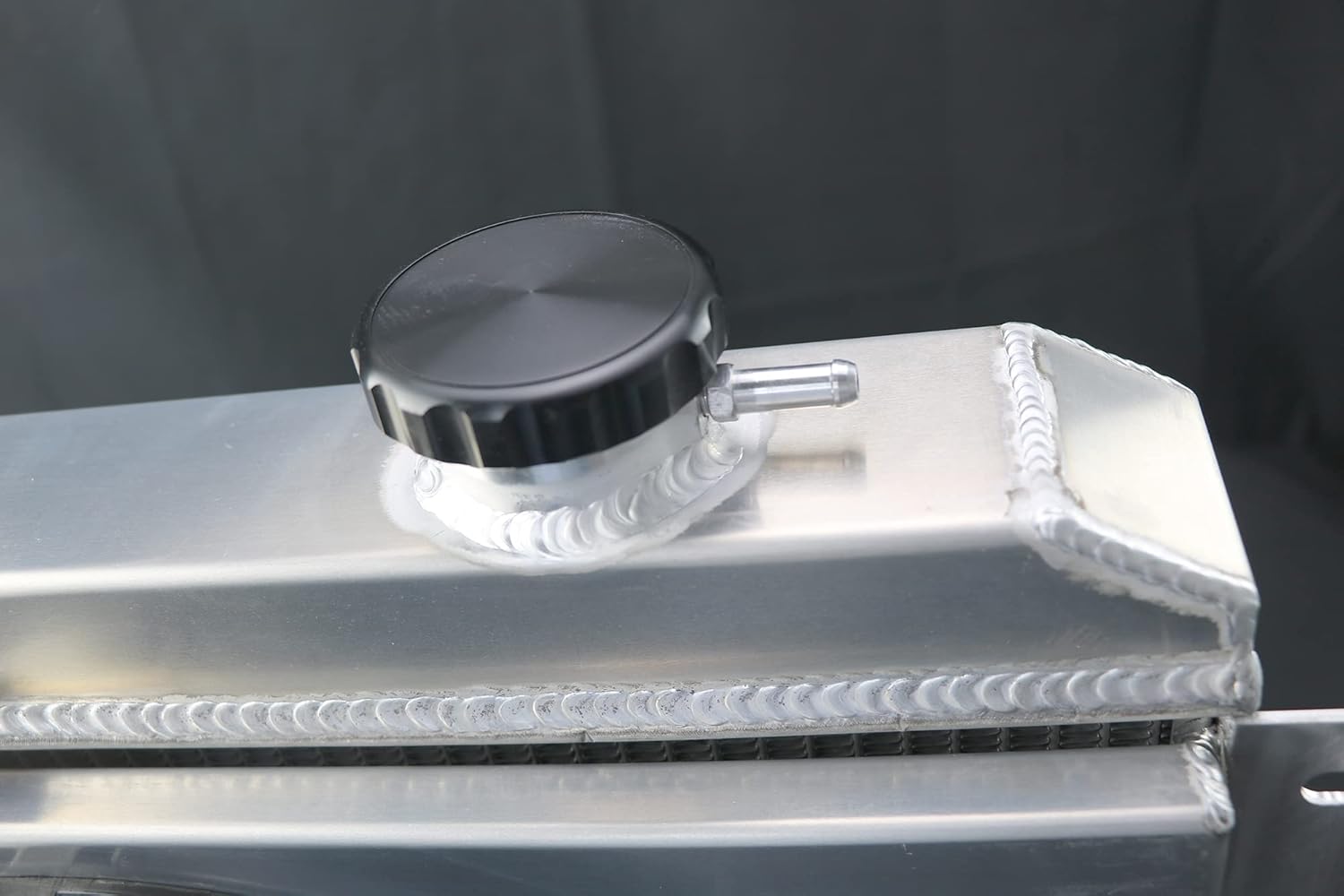

• CNC machined cap with Engraved craftsmanship & anodized treatment
